Option A: The ‘Original’ / Nike Smoke Profile

Criteria

Description

Look Back Factor

<subjective>

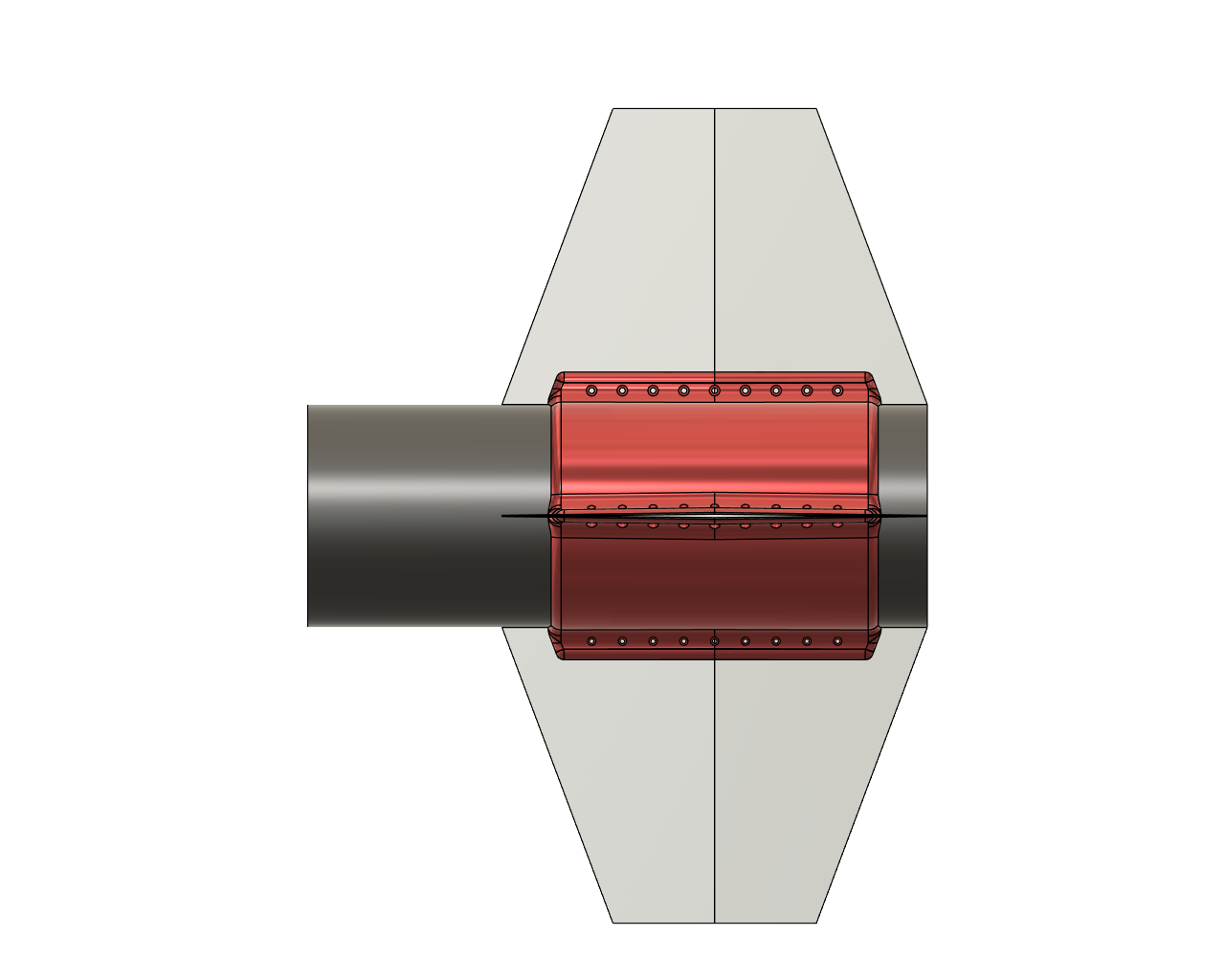

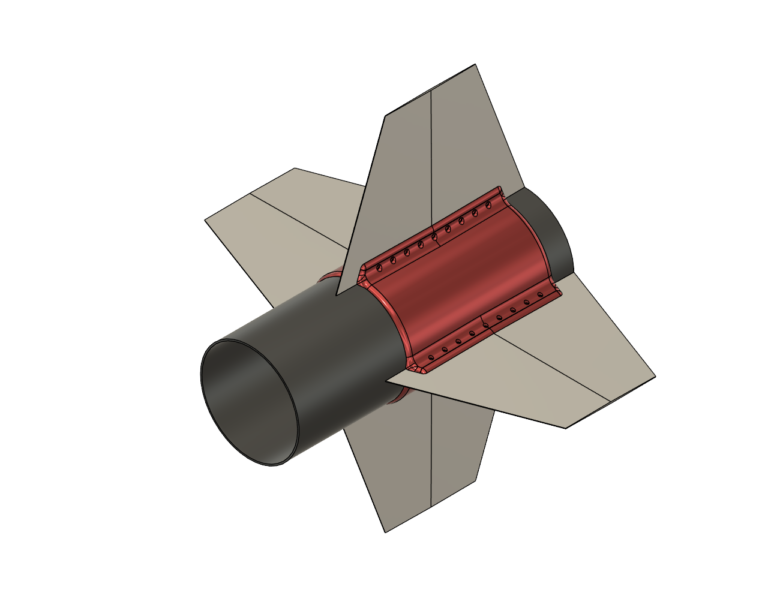

The iconic Nike Smoke trapezoidal profile

Performance

Max Altitude: 11,753’

Max Velocity: 814 f/sec

Max Acceleration: 161 f/sec2

Stability caliber: 2.4

Size

Single Fin Surface Area: 552.595 in^2

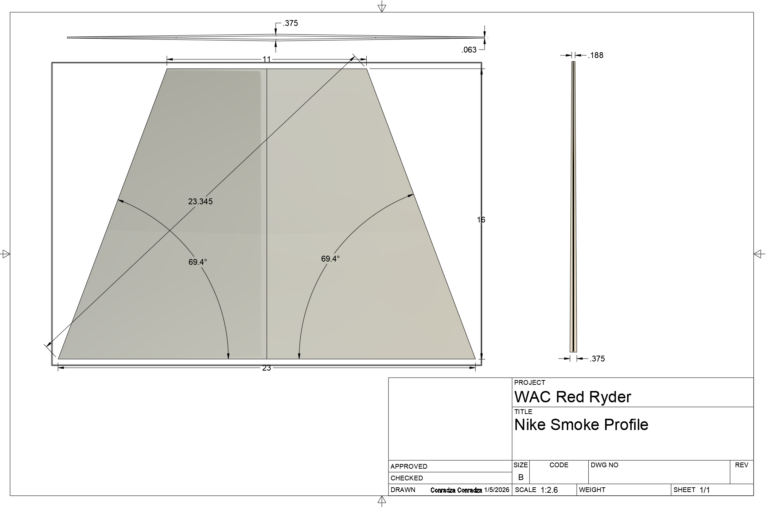

Refer to above image for dimensions

Suitable Construction Techniques

Both Option A and Option B

The size for both the individual fins and interconnecting brackets will fit into the available CNC machine build volume.

Suitable Construction Materials

All materials ranging from basic laminated birch to full aluminum
