Red Ryder Black Brant

Criteria

Description

Look Back Factor

<subjective>

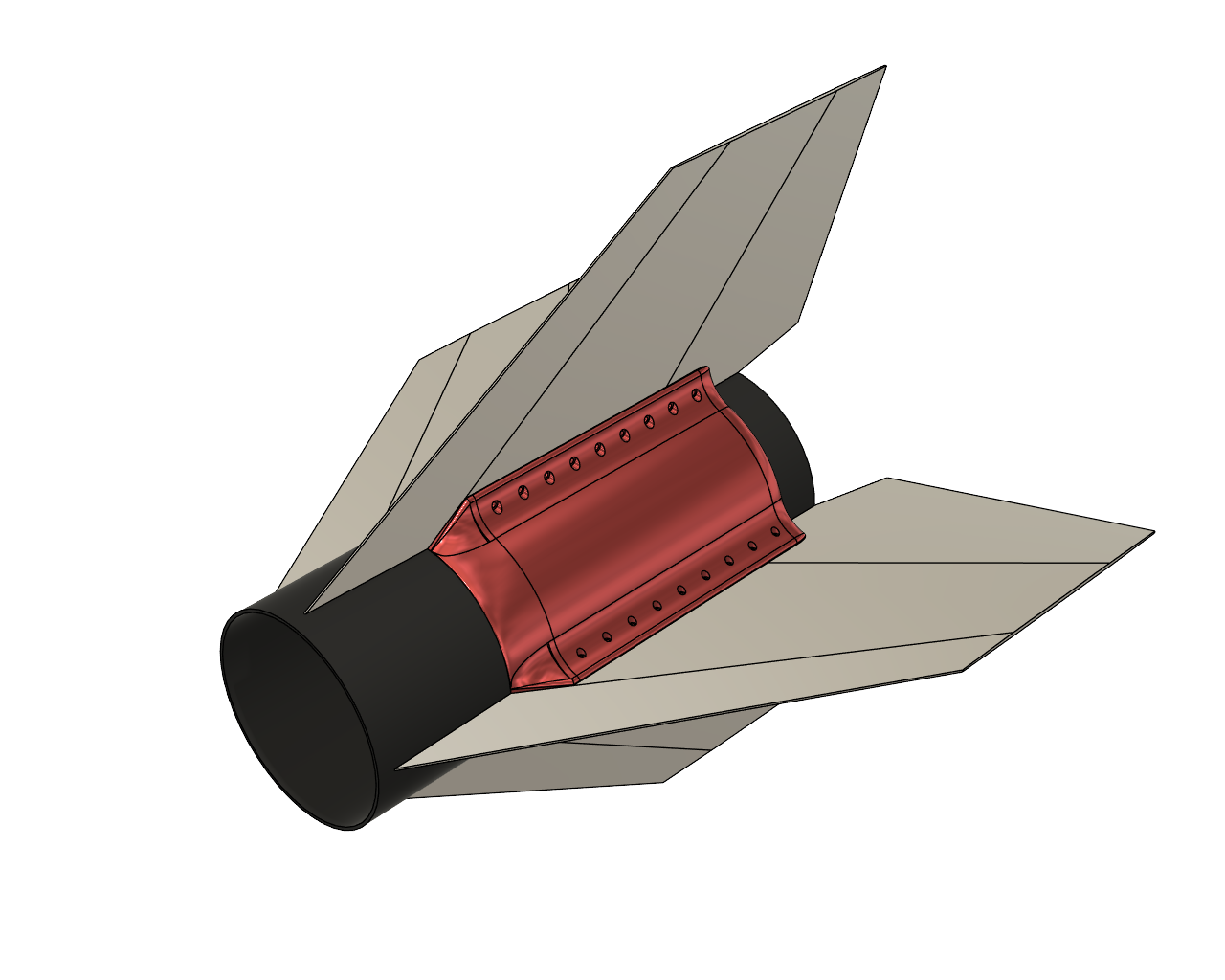

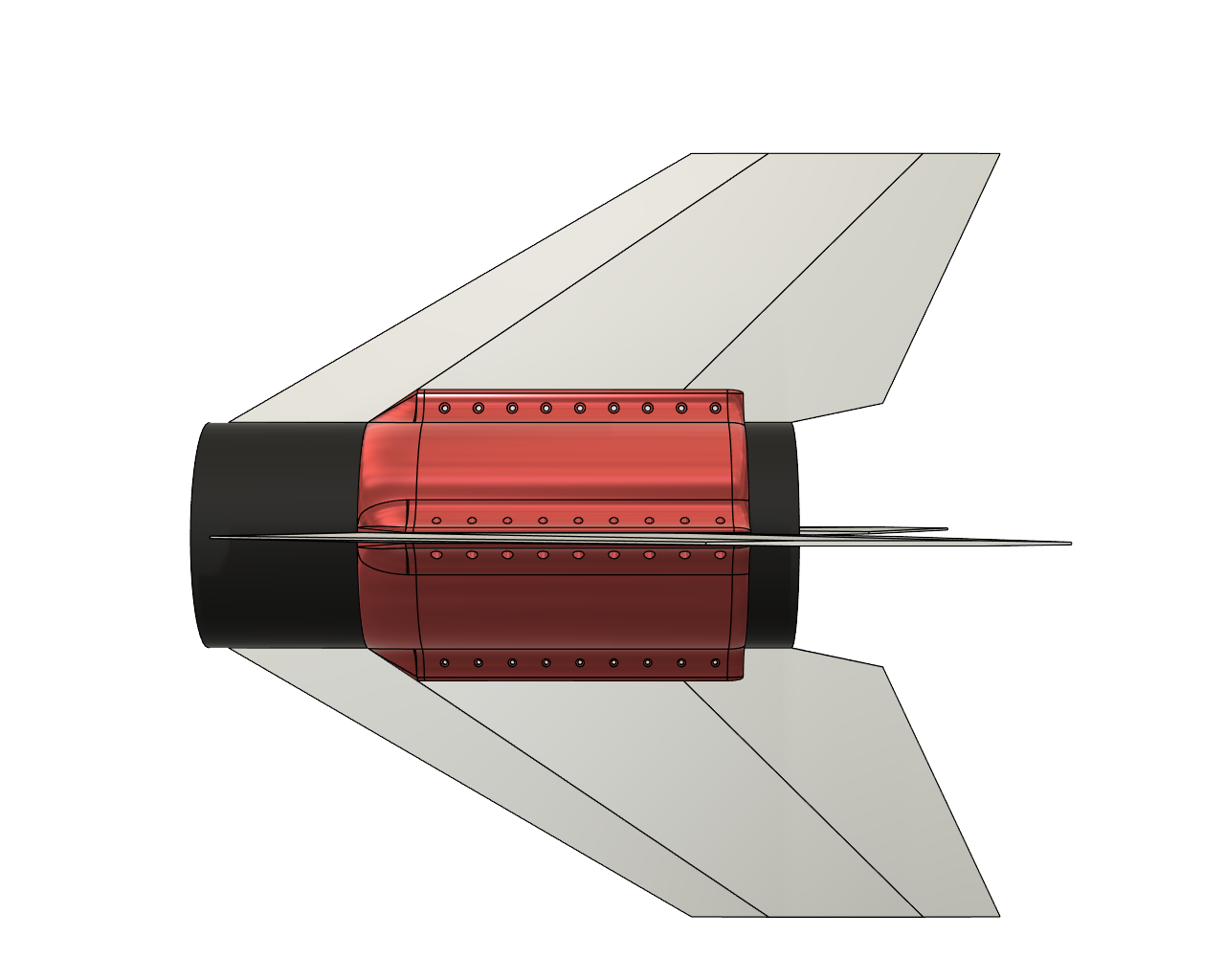

The iconic Black Brant VC Swept or Tapered Delta

Performance

Max Altitude: 11,874’

Max Velocity: 821 f/sec

Max Acceleration: 162 f/sec2

Stability caliber: 1.54

Size

Single Fin Surface Area: 753.032 in^2

These fins are MASSIVE!

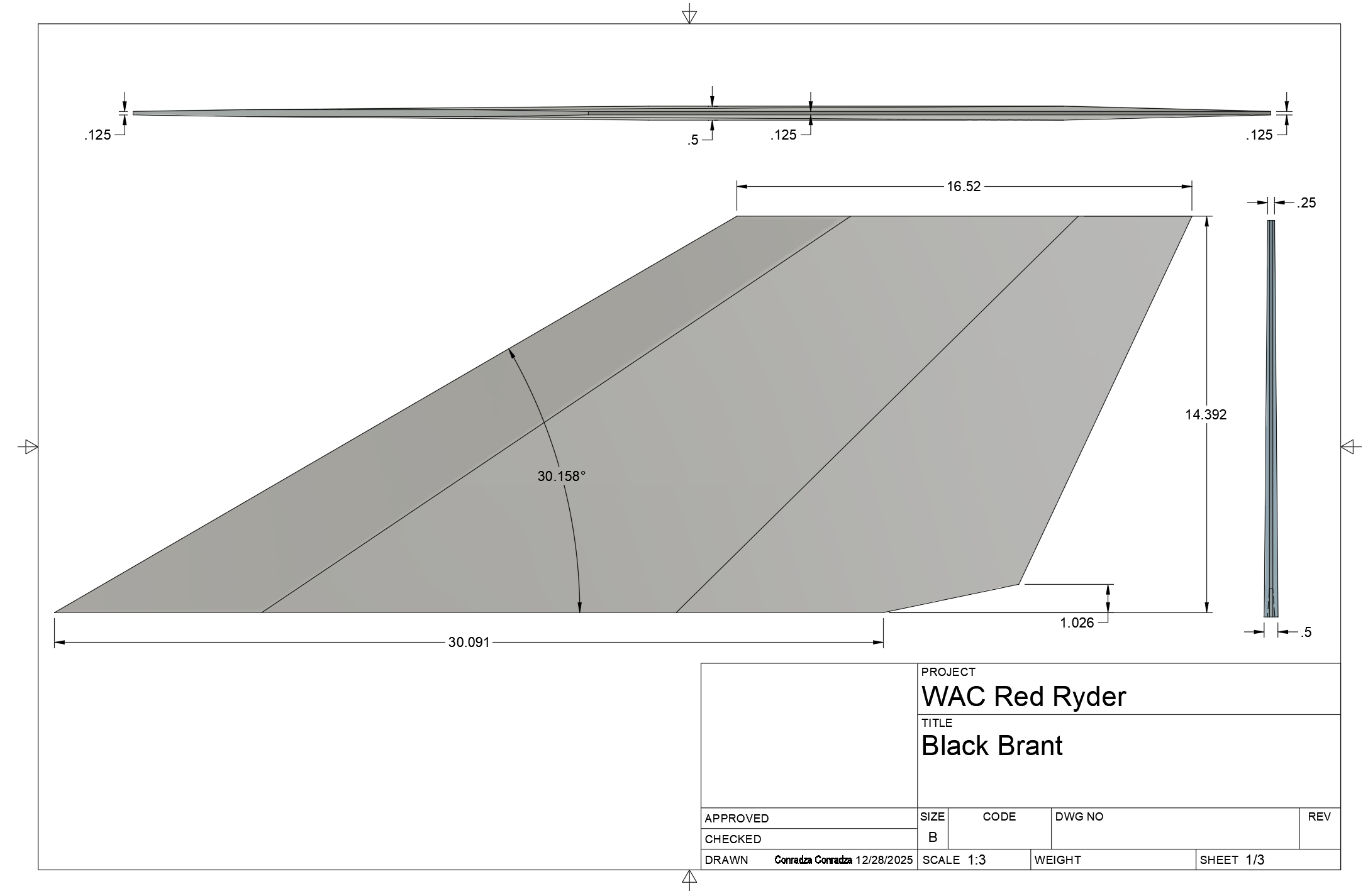

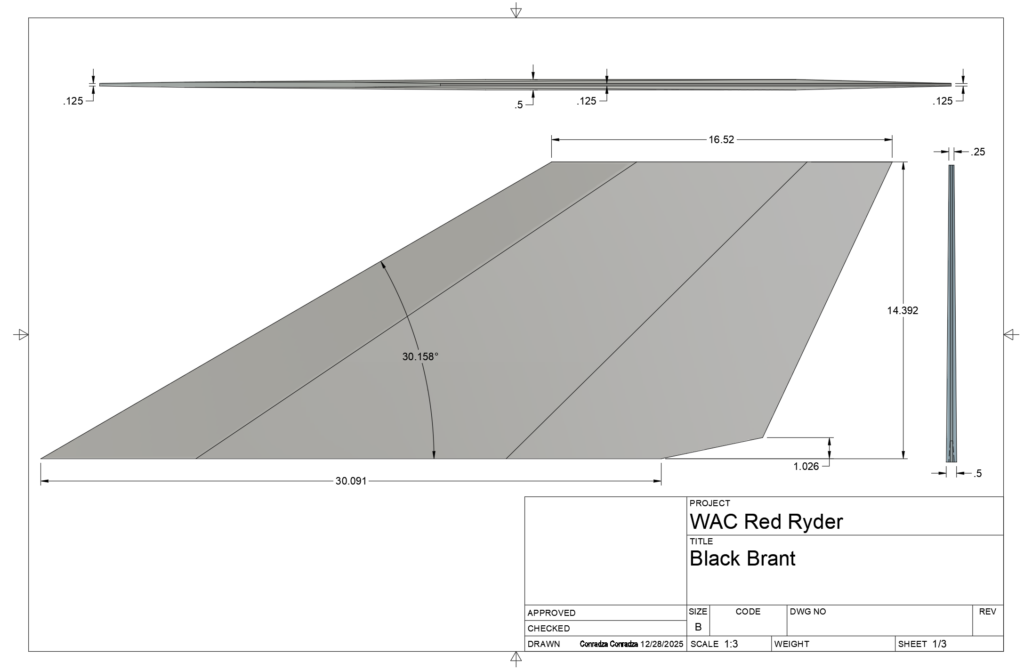

Refer to above image for dimensions

Suitable Construction Techniques

Option A ONLY

The size for both the individual fins and interconnecting brackets will NOT fit into the available CNC machine build volume.

Suitable Construction Materials

Materials that include basic laminated birch and Nomex Honeycomb

Aluminum NOT an option
