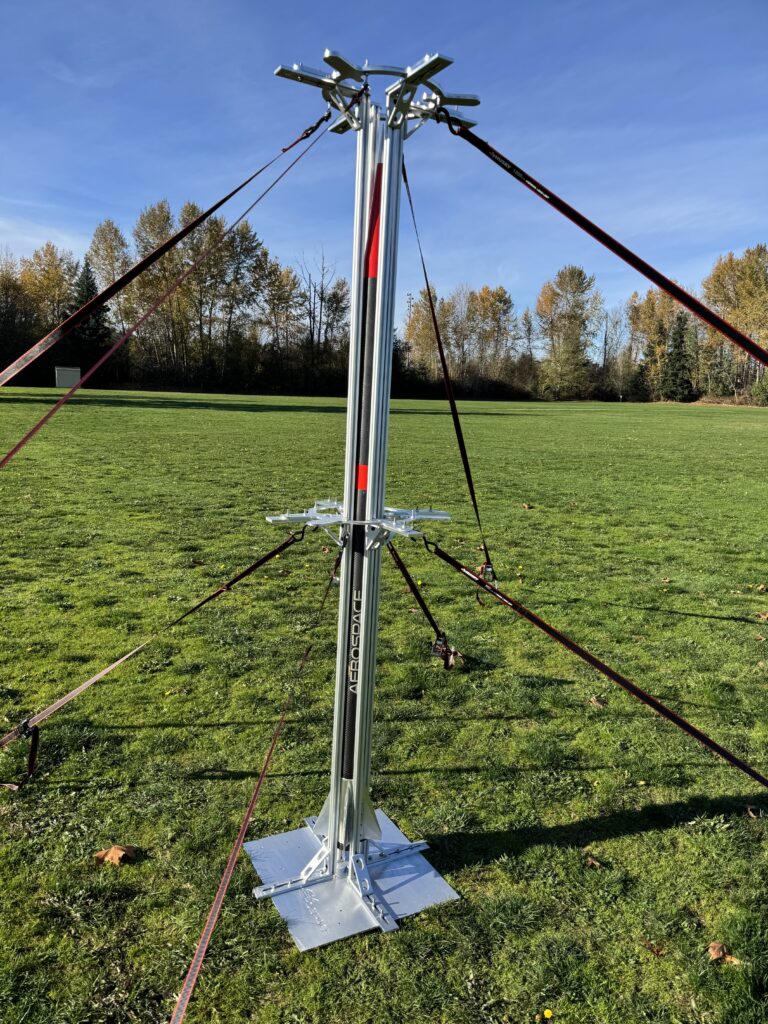

With this tower build option you would supply your own Blast Plate and drill the required holes to support the launch rail ‘struts’. At minimum you would need to purchase the following from 434 Aerospace:
NOTE: The Additional materials pricing EXAMPLE is from McMaster-Carr (includes product codes), Industrial Metal Services (for Blast Plate), and Home Depot.
NOTE: Costs for ‘additional hardware’ is an estimate and should be used as an example. Your costs will vary – specifically the shipping costs and sales TAX not shown.
| Additional Building Material Required: 1010 Rail Build | Build Min Quantity | Order Size | Order Min Quantity | Unit Cost | Total Cost |
|---|---|---|---|---|---|
| McMaster-Carr | |||||
| T-Slotted Framing, Open Gusset Bracket For 45mm High Rail, 3.5" Long, Silver: 5537T661 | 8 | 1 | 1 | $ 13.18 | $ 105.44 |
| 8 FEET: T-Slotted Framing: Single Four Slot Rail, Silver, 1" High x 1" Wide, Solid: 47065T101 | 4 | $ 44.32 | $ 177.28 | ||
| Medium-Strength Steel Hex Nut, Grade 5, Zinc-Plated, 1/4"-20 Thread Size: 95462A029 | 32 | 100 | 1 | $ 6.32 | $ 6.32 |
| Closed Eye Routing Eyebolt - Not For Lifting, 316 Stainless Steel With Nut, 1/4"-20 Thread Size, 2" Shank Length: 9494T34 | 4 | 1 | 1 | $ 8.12 | $ 32.48 |
| 18-8 Stainless Steel Socket Head Screw: 1/4"-20 Thread Size, 3/4" Long: 92196A540 | 16 | 50 | 1 | $ 26.18 | $ 26.18 |
| 18-8 Stainless Steel Socket Head Screw: 1/4"-20 Thread Size, 1-1/4" Long: 92196A544 | 16 | 25 | 1 | $ 21.54 | $ 21.54 |
| 316 Stainless Steel Washer For 1/4" Screw Size, General Purpose, 0.281" Id: 90107A029 | 32 | 100 | 1 | $ 7.63 | $ 7.63 |
| End-Feed Nut and Flanged Button Head, 1" and 25mm Rail: 47065T142 | 16 | 4 | 4 | $ 3.30 | $ 13.20 |
| Shipping | $ 73.23 | ||||
| Total | $ 463.30 | ||||
| Other Components: The Home Depot | |||||
| 1/2 in. x 10 in. Hex Zinc Plated Lag Screw | 4 | $ 3.10 | $ 12.40 | ||
| 16 ft. 1.25 in. Ratchet Tie-Down Straps with S-Hook (4-Pack) | 1 | $ 19.98 | $ 19.98 | ||
| Total | $ 32.38 |
